製品詳細
起源の場所: 中国
ブランド名: WAGE
証明: EMS， OHSMS
モデル番号: HG-VM
文書: 製品説明書 PDF
支払及び船積みの言葉
最小注文数量: 1セット
価格: 6200 to 9250usd
パッケージの詳細: 箱
受渡し時間: 1〜3週間
支払条件: T/T、Western Union、MoneyGram、L/C
供給の能力: 週に10セット
ペイントタイプ: |
熱プラスチック |
示すタイプ: |
騒音表示 |
塗料タンク: |
120L |
ディスペンサー: |
12kg |
突起の厚さ: |
3 - 5 mm 調整 |
線幅: |
15, 20, 30, 45cm |
ペイントタイプ: |
熱プラスチック |
示すタイプ: |
騒音表示 |
塗料タンク: |
120L |
ディスペンサー: |
12kg |
突起の厚さ: |
3 - 5 mm 調整 |
線幅: |
15, 20, 30, 45cm |

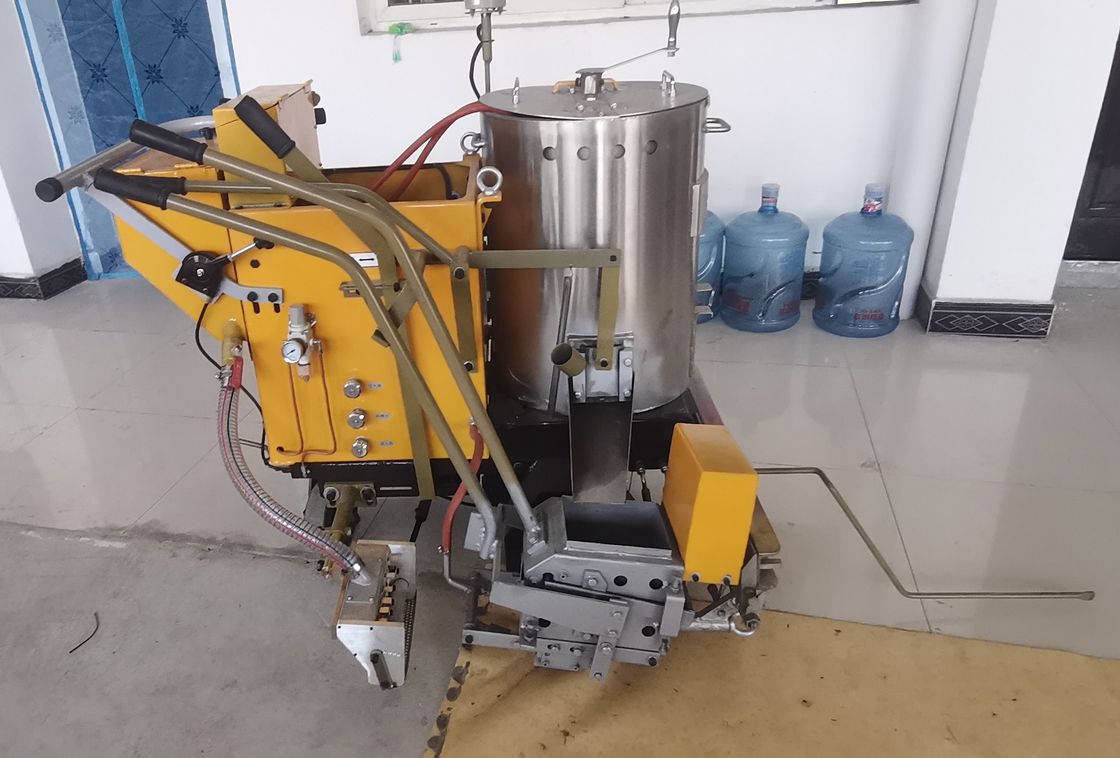

battery driving Thermoplastic convex / Vibration line Road Line Marking Machine for noise marking
Vibration marking is a kind of marking which is widely used in developed countries. Its shape is concave and convex. When a car passes by, it will have a "boom" sound. It has a good warning and reminding effect on the driver, so it is also called noise markin
WAGE Vibration road line marking machine has the following functional:
1. Adopt automatic oil pressure stepless speed change driving mode, automatic walking, to ensure uniform and efficient construction effect;
2. The scriber adopts stainless steel insulating material coatings barrel and inserting manual mixing device to ensure the best temperature and shape of the melt.
3. Unique marking hopper, which makes the shape, spacing and height of marking protrusion precise and accurate, makes the marking of hot melt oscillation complete at one time, and has strong wear resistance and impact resistance.
4. Synchronized clutch glass bead sprayer makes the glass beads more evenly scattered on the marking line.
5. It is equipped with speed regulating gear shifting device and rear wheel positioning system to ensure that the equipment is fixed and straight ahead.
Parameters:
| HG-EVM | |
| motor | Battery |
| moving speed | 12km/h |
| Grade ability | 15°MAX 15° |
| cylinder capacity | 120kg/tank |
| Glass Micro sphere cylinder capacity | 12kg/tank |
| Bulge thickness | 3-5mm(adjustment) |
| standard width | 150mm |
| size options | 150/200/300/450mm(marking scoops replacement) |
| size (L*W*H)mm | 1400*1100*1200mm |
| Weight | 210kg |
Main parts:
