製品詳細
起源の場所: 中国
ブランド名: WAGE
証明: EMS， OHSMS
モデル番号: HG-SVM
文書: 製品説明書 PDF
支払及び船積みの言葉
最小注文数量: 1セット
価格: 5000-8000usd per set
パッケージの詳細: 箱
受渡し時間: 1～3週間
支払条件: L/C、T/T、ウェスタンユニオン、マネーグラム
供給の能力: 1週間に10セット
標識モデル: |
2つのコンポーネント 凸直線 |
ディスペンサー: |
自転倒し |
塗料シリンダーの容量: |
30L*2 |
ガラスシリンダー: |
10L |
寸法: |
1400*800*1100mm |
材料: |
ステンレス鋼 |
製品名: |
2つのコンポーネントの道路標識機 |
厚さ: |
1.2-3.0mm |
示す幅: |
50〜500mm |
重さ: |
200kg |
ディスペンサー: |
自転車 |
標識モデル: |
2つのコンポーネント 凸直線 |
ディスペンサー: |
自転倒し |
塗料シリンダーの容量: |
30L*2 |
ガラスシリンダー: |
10L |
寸法: |
1400*800*1100mm |
材料: |
ステンレス鋼 |
製品名: |
2つのコンポーネントの道路標識機 |
厚さ: |
1.2-3.0mm |
示す幅: |
50〜500mm |
重さ: |
200kg |
ディスペンサー: |
自転車 |
| Attribute | Value |
|---|---|
| Marking Model | Two components convex line |
| Dispenser | Self dropping |
| Paint Cylinder Volume | 30L*2 |
| Glass Cylinder | 10L |
| Dimensions | 1400*800*1100mm |
| Material | Stainless Steel |
| Product Name | Two Component Road Marking Machine |
| Spray Thickness | 1-4mm |
| Spray Width | 50-400mm |
| Weight | 200kg |

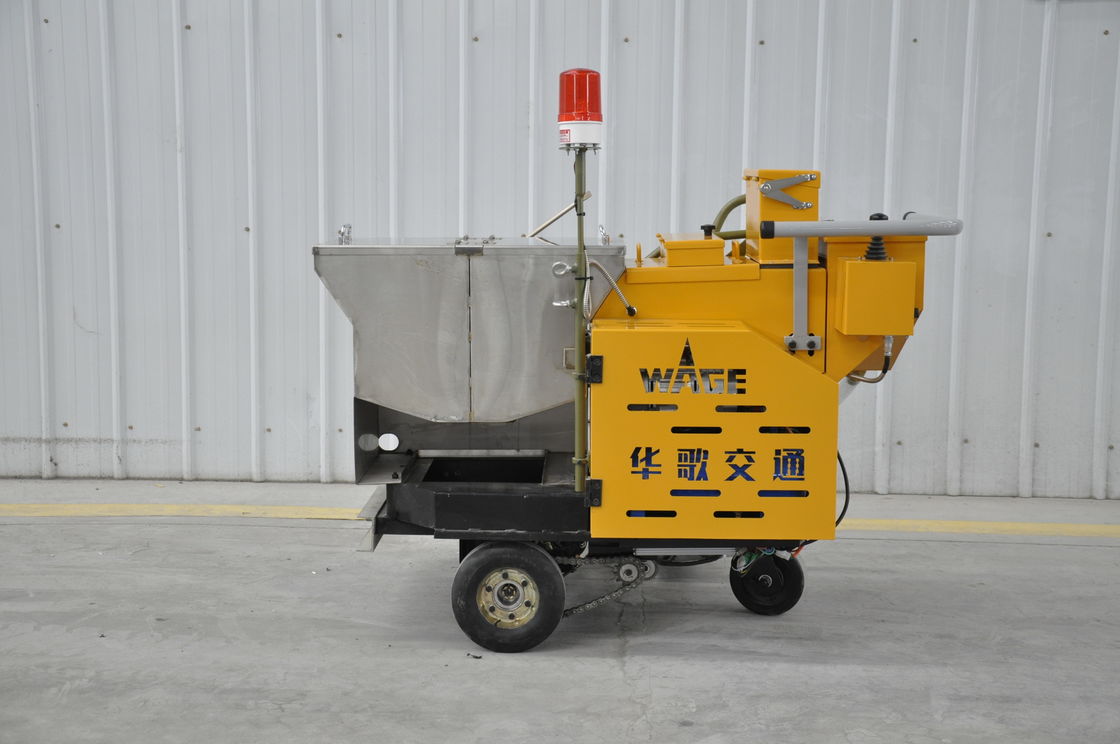

Convex line two component road line marking machine
General information: Two-component marking series is divided into spraying and scraping two construction processes. Two coatings with the aid of two pumps or two paint barrels after mixing chemical reaction to form marking. Compared with the hot melt marking, the two-component marking construction has the advantages of environmental protection, high wear resistance, good reflectivity, long service life and easy construction.
HG-20MM-II puts two kinds of coatings in the same barrel separated. After discharging the coatings from the tank, the coatings are fully stirred by an electric stirring shaft. After mixing in the crossing hopper, the chemical reaction is carried out. Finally, the marking is done through the crossing hopper. Compared with spraying two-component marking, scraping marking has the advantages of thicker marking thickness, longer wear resistance, better reflectivity and more uniform mixing.
| Parameter | Specification |
|---|---|
| Marking mode | 2K convex line |
| Agitation speed | 650r/min |
| Glass Micro sphere cylinder capacity | 25kg |
| Spraying system | Self dropping |
| Paint cylinder capacity | 60L/tank x 2 |
| Marking thickness | 1.2-2.5mm adjustment within ranges |
| Standard width | 150mm |
| Width optional | 100/200/300/400/450mm (scoops replacement) |
| Size (L*W*H) | 1200*900*1100mm |
| Weight | 200kg |
